Spry IEEE 1394 Cardbus Interface Card

The Spry SpeedGenie 400L is a Cardbus interface card and extend your notebook computer with 1394 serial bus. It offers three independent 1394 bus connections with 400 Mbps transfer rate. With this card ,user can easily hot swap the 1394 devices to their PC and automatically recognize them and install drivers by Windows98SE, Win200, Windows ME . That will make PC have the real Plug and Play function and user-friendly like consumer products.

Specifications
Interface	Full support IEEE 1394-1995 and 1394a standard
	Full compliant with OHCI 1.0
	Provides three IEEE 1394.a ports at 100/200/400 Mbps
PCI Standard	Support PCI Revision 2.2 Compliant.
	Support PCI Bus Power Management Interface Specification V.1.1
FIFO	Built-in FIFOs for isochronous transmit(1024 bytes), asynchronous transmit (1024 bytes) , and receive (2048 bytes)
DMA	4 isochronous transmit DMAs and 4 isochronous reveive DMAs supported
Cardbus	Support Cardbus type 2
External Power	AC to DC ( 12V, 1.5A )
Dimensions	116mm×54mm×18mm
Environmental Conditions	Temperature Operating: ＋5℃ to ＋45℃ Non Operating : -25℃ to ＋70℃
	Humidity Operating: 20% to 80% Non Operating : 15% to 90%
EMC Compliance	CE FCC part 15 Class B

System requirements:

l OS: Windows 98SE,Windows 2000, Windows ME or Mac OS 8.6 above

l Interface: one Cardbus type 2 slot.

Applications:

l Connect external IEEE 1394 devices,such as CD-RW,HDD,DVD, set-top-box, DTV,DVC

l DV editing with notebook computer.

High speed networking ( transfer rate : 400Mbps)

Spry IEEE 1394 & USB2.0 Combo Card

Description:

	Provides 2 external with 1 internal USB 2.0 Compliant Down Stream Ports, data transfer rate up to 480 Mbps
	Compliant with IEEE 1394-1995 standard and USB rev 2.0 specification
	Compliant with PCI 2.1 interface Adaptor
	Supports Windows 98SE/ME/2000 Operation System
	Provides 2 external and with 1 internal 1394 POrts, data transfer rate up to 400 Mbps
	Compatible with OHCI
	Supports Plug-and-Play specification

　USB Hub

USB Hubs

Model No.

DU-H4, DU-H7

If your computer does not have enough USB ports, use one of these hubs to add USB ports.
Each of these hubs turns a single USB port into multiple USB ports. Hosts such as PCs, iMacs and PowerPCs with USB support can use these hubs to quickly and easily expand the number of USB ports available to the computers.

	Adds USB ports to your computer
	Allows multiple cameras, WebCams, radios, MP3 devices to connect to your computer
	Latest USB 1.1 specification compliance
	Multiple USB Type A ports for downstream connection to multiple USB devices
	USB Type B port for upstream connection to a computer or USB hub
	Bus fault detection and recovery
	2-meter (6-foot) USB A-to-B cable provided for connection to host
	Over-current and high-inrush current protection

USB Hubs

Model Number

DU-H4

DU-H7

USB Standard

USB 1.1

Ports

1 USB Type B (to computer or USB hub)
4 USB Type A (to USB peripherals)

1 USB Type B (to computer or USB hub)
7USB Type A (to USB peripherals)

Cables

USB cable

Speeds

12Mbps

INTEL InBusiness Hubs and Switches

The Intel® InBusiness™ 4-, 8- & 16-Port 10/100 Switches are ideal for improving the performance of your network using standard or Fast Ethernet. Auto-sensing ports automatically detect the speed of the connected device. Intel InBusiness switches are plug and play, making installation a breeze. Designed to give users high-speed performance at an affordable price.

Intel InBusiness Switches
10/100 Switches are ideal for maximizing the performance of your network using either standard or Fast Ethernet. All Intel InBusiness products are the simple solution for today's demanding network needs. Intel InBusiness switches are part of Intel's complete line of products designed specifically for small networks.

	Autosensing 10/100 ports connect 10BASE-T and 100BASE-TX devices
	Creates a high speed network in minutes
	Segments and extends busy networks
	Additional port for easy network expansion
	Sets up or changes your peer-to-peer network in minutes

Contents include a simple step-by-step installation wizard
that helps to install files and print sharing capabilities to your network.

	Data Sheet PDF version
	Technical Specifications
	Register Your Product

Switch to Increased Performance
Switched Ethernet increases the performance of your network and connects directly to additional hubs or network devices supporting 10 or 100Base-TX Ethernet. Auto-sensing ports automatically detect the speed of the connected device. No configuration needed. Switching provides each user a direct channel to network devices.

Plug and Play Installation
Intel InBusiness switches are plug and play, making installation quick and easy. Basic port labeling makes it simple to identify and make proper connections to each device.

Unique SureStack Design
Intel InBusiness products have a unique, compact form perfect for offices with limited space. SureStack locking connectors allow you to integrate additonal InBusiness products in a single attractive stack that can be placed horizontally or vertically, or even mounted on a wall, saving valuable space for other equipment.

Additional Network Expansion
A special port, called a "crossover" port, allows you to connect Intel InBusiness switches to other hubs or switches without special wiring. Add additional ports as your network grows by stacking and connecting hubs with this special port.

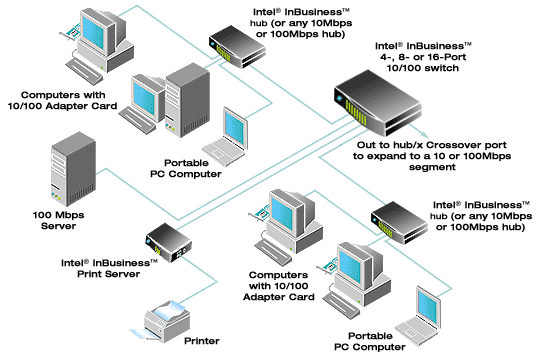

Segment Your Existing Network with an Intel® InBusiness™ 4-, 8- or 16-Port 10/100 Switch

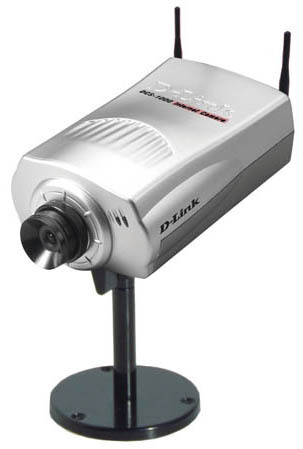

產品名稱：	DCS-1000W 無線網路攝影機
SPRY
DCS-1000W	多功能無線網路攝影機

產品特色：

　

SPRY Air DCS-1000W 是一部具有VGA影像品質的多功能網路攝影機。

他可以從網際網路上傳輸實際影像，以作為遠端保全監控系統使用，DCS-1000W同時提供IEEE 802.11b無線網路標準與高速乙太網路傳輸介面。

內建的Web伺服器，只要透過一般的Web瀏覽器，就可以看到網路攝影機的畫面。

　

技術規格：

系統平台需求：Windows XP ,Windows 2000 ,Windows Me ,Windows 98SE ,Windows 98 ,Windows 95 ,Macintosh OS 8 and above ,Unix ,Linux

遠端管理軟體系統需求：Windows XP ,Windows 2000 ,Windows Me ,Windows 98SE ,Windows 98 ,Windows 95

硬體系統：
＊ C/CS Mount鏡頭座：可依需求更換

＊一個RJ-45 10/100Mbps自動偵測網路埠

＊內建802.11b無線網路模組

影像選項：

＊ CMOS VGA感應器

＊解析度： 160X120，320X240，640X480，＠ 24-bit RGB color

＊快門速度： 1/50～1/15000 sec

＊ 5種等級壓縮模式

＊畫面圖框數( frame rate)： 1,5,7,15,20 or Auto （視影像格式而定）

＊白平衡：自動或手動
＊對比控制：自動或手動

＊色彩校正：自動或手動

系統設定
IP Address ,Default Gateway Address ,DNS Address ,Manager ID (username) ,Manager Password ,Save Settings Button ,Recover Default Value Button

通訊協定
HTTP, FTP, TCP/IP,UDP, RARP, PING, ARP, DHCP, PPPoE

網路連結
＊ 802.11b 無線網路
＊ 802.3乙太網路
＊ 802.3u 高速乙太網路

無線網路規格
傳輸速率: Mbps/channel
＊11 : CCK
＊5.5 : CCK
＊2 : DQPSK
＊1 : DBSK

傳輸距離
＊indoors ：per cell approximately 35 to 100 meters
＊outdoors ：per cell approximately 100 to 300 meters

傳輸功率
＊Nominal Temp. Range: 17dBm
＊Extended Temp. Range: 14dBm min
＊Transmit Power, 2.7v to 3v: 14dBm min

接收靈敏度：
＊ Nominal Temp Range:

11Mbps 10-5BER @ -84dBm Minimum

5.5Mbps 10-5BER @ -87dBm Minimum

1 Mbps 10-5BER @-90dBm Minimum
＊ Extended Temp Range:

11Mbps 10-5BER @ -78dBm Minimum

5.5Mbps 10-5BER @ -81dBm Minimum

1 Mbps 10-5BER @-84dBm Minimum

　

網路架構
支援Ad-Hoc點對點模式以及公共網路模式，符合802.11b無線網路規範

　

天線
Internal patch antenna supporting diversity，在無線網路基地台範圍中可漫遊，連線不間斷。

頻率範圍:
2.400~2.4835 GHz, Direct Sequence Spread Spectrum (DSSS)

傳輸通道(channel):

1-11 United States (FCC)

1-11 Canada (DOC)

1-14 Japan (MKK)

1-13 Europe (Except Spain and France) (ETSI)

Spry Ultra2 to Ultra DMA RAID subsystems

The Spry Otto di Oro is an intelligent Ultra2 SCSI drive ready RAID subsystem supplying fault tolerant data protection and 100% transparency to the host operating system. It is a full-featured RAID array supporting RAID levels 0, 1, 0+1, 3, and 5. For higher data throughput rates and extended SCSI cable lengths, the Otto di Oro contains a Ultra2 SCSI host interface providing data rates up to 80 MB/s. Available in either a 4U rackmount or a tower based chassis, it is the ideal storage solution for applications requiring high data throughput, availability, and flexibility in configuration.

Spry Power 6800

Spry LVD SCSI High Tower subsystems

The Spry Power series RAID are 8-bay intelligent Ultra160 LVD SCSI to / Ultra160 LVD SCSI RAID subsystems that offers fault tolerant data protection independent of host operating system. It offers full-featured RAID storage array supporting RAID levels 0, 1, 0+1, 3, and 5 with status signals, hot swapping trays and enclosure monitoring. It is the ideal storage solution for those applications requiring high-speed throughput, high availability, higher capacity, and configuration flexibility.

Spry Power 6800 高速容錯磁碟陣列系統

Secure the data together - RAID

當企業電腦系統當機或硬碟損壞時意味將面臨作業停擺、收入減少的重大損失，一份資料調查指出美國一年因電腦當機所造成的損害高達40億美元，而硬碟損壞是造成電腦當機、資料流失的最主要原因。

Spry Power 6800 高速容錯磁碟陣列系統，採用 64bits RISC精簡指令微處理器，提供 RAID 0、1、3、5、0+1磁碟陣列等級，提供硬碟損壞時線上更換與資料重建之功能(on line hot swap & auto rebuild)，防止因操作中的硬碟損壞所造成的當機與資料流失，是企業資訊電腦化中不可或缺的資料容錯產品。

Spry Power 6800 透過160MB/s (Ultra 160)資料傳輸速率之 SCSI 介面連接主機，可連接 8顆 Ultra2/Utra160 SCSI硬碟，主機將Power 6800連接之所有SCSI硬碟視為一顆大容量之 SCSI 硬碟，可配合各種資料庫使用，提供最高之效能與資料安全。

Spry Power 6800 為獨立式磁碟陣列系統, 與主機間只要透過標準之 SCSI 界面即可輕易連接, 不需額外安裝任何驅動軟體。而且提供瀏灠器介面之 RAID 管理軟體，可於遠端監視 RAID 系統, 並將故障訊息以 E-mail 方式傳送給系統管理者。

Spry Power 6800 特殊的背板設計可使SCA-2硬碟直接連接至背板，防止因排線串接所導致的接觸不良問題‧

Spry Power 6800 提供硬碟線上抽換之容錯功能，當硬碟故障時可於不關機狀態下將硬碟抽拔出來以更換新硬碟‧

Spry Power 6800 內含兩組相互備援之熱抽取電源供應器，提供更可靠之的操作環境。

Spry Power 6800 內建ENC 環境控制器可即時顯示操作溫度並監測溫度、電壓、風扇、電源供應器之狀況，異常時以燈號或蜂鳴器警告管理者處理。

Spry Power 6800 線上熱抽拔功能可於硬碟故障時以硬碟故障指示燈(Disk failed indicator)指示使用者故障硬

Spry Power 6800 高速容錯磁碟陣列系統規格

外觀	直立式	熱抽取硬碟盒	8
RAID 微處理器	64bits RISC CPU	硬碟連接介面	SCA-2 80pin
Cache 記憶體	64 ~ 512MB	ENC 環境監測控制器	是
RAID 等級	0, 1, 3, 5, 0+1	即時機箱溫度顯示	是
SCSI通道數	4	容錯式電源供應器	300W *2
SCSI傳輸率	160MB/s	容錯式散熱風扇	4
LCD 面板	是	硬碟熱抽拔	是
線上擴充硬碟容量	是	硬碟資料自動重建	是
硬碟損壞指示燈	是	蜂鳴器聲響警告	是
Web Base GUI RAID 管理軟體	是	電源需求	110/220VAC(± 10%)
體積	525(H)215(W)520(D)	工作環境:溫度、濕度要求	10%~85% -40℃to 60℃

DATA FREE (MIRROR) TECHNICAL SPECIFICATION

Model	DataFree	MR 1394	MS 223I
Form Factor	5 1/4" Half-Height	5 1/4" Half-Height	5 1/4" Half-Height
RAID Level	1	1
No. of Host Channel	1	1
Host Bus Interface	UDMA66	Firmwire 1394	UDMA66
No. of Disk Channel	2	2
Disk Bus Interface	UDMA66	UDMA66	UDMA66
Data Transfer Rate	Up to 66MB/Sec.	Up to 400Mbps.	Up to 66MB/Sec.
Backplane Board	UDMA66	UDMA66	UDMA66
Hot Swap Disk Trays	2(1")	2(1")	3(1")
Disk Trays Interface	UDMA66	UDMA66	UDMA66
No. of Disk	2	2	3
Cooling Fan	2	2	2
Audible Alarm	Yes	Yes
Failed Disk Indicator	Yes	Yes
Failed Disk Auto Rebuild	Yes	Yes
Continuous Rebuild	Yes	Yes
Environmental	Power Required: DC 5V 3A Relative Humidity: 10% to 85% Non-condensing Operating Temp:5^oC to 55^oC
Dimension	84.7(H)* 149.0(W)* 233.4(D)mm

1. IDE 介面內裝式磁碟陣列

2. 獨立式主機介面(Host Independent), 不需安裝任何驅動軟體, 支援 Win95/Win98, WinNT, Win 2000, Linux 等作業系統

3. 支援RAID Level 1

4. 提供2個1吋高 UDMA66 IDE介面之硬碟抽取盒, 並具安全防護鎖

5. 硬碟連接採 UDMA66 IDE 介面之熱抽換背板

6. 提供2組散熱風扇, 防止因風扇損壞而造成散熱不良.

7. 當硬碟損壞時, 會以蜂鳴器(Buzzer)聲音警示, 且面板上的LED會以不同顏色燈號指示損壞硬碟位置,方便維護人員處理.

8. 當硬碟損壞時, 可不關機進行硬碟更換(Hot Swap), 置入新硬碟後不需任何指令操作即可進行資料重建(On-Line & Auto Rebuild).

9. 支援連續性 rebuild, 當 rebuild 中停電, 系統於恢復供電後, 會繼續 rebuild.

10. 磁碟陣列廠商為美國 Disk Array RAB 協會會員

11. 磁碟陣列廠商需通過 ISO 9001:2000 版認證
